Name: RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Casa > prodotti > Macchina per la perforazione di pozzi d'acqua >

RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil

800m deep water well drilling machine

water well drilling machine for all soils

RCF800C well drilling machine with warranty

Luogo di origine:

Cina

Marca:

RanCheng

Certificazione:

CE, ISO 9001:2000

Numero di modello:

RCF800C

Contattici

Richiesta Una citazione

Dettagli del prodotto

nome:

Macchina per la perforazione di pozzi d'acqua

Modello:

RCF800C

Perforazioni geologiche:

Tutti i tipi

Sistema di trivellazione e funzionamento:

Idraulico

Profondità massima del foro:

800 metri

Diametro del foro:

140-500 metri

Motore diesel:

154KW Cummins

DIMENSIONE:

6300×2300×2650mm

Evidenziare:

800m deep water well drilling machine

water well drilling machine for all soils

RCF800C well drilling machine with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

Negoziabile

Imballaggi particolari

Può essere spedito da un contenitore da 40 pollici

Tempi di consegna

10-15 giorni lavorativi

Termini di pagamento

T/T, Western Union

Capacità di alimentazione

100 set al mese

Prodotti correlati

Video

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Ottenga il migliore prezzo

Video

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Ottenga il migliore prezzo

Video

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Ottenga il migliore prezzo

Video

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione del prodotto

RCF800C Water Well Drilling Machine for 800m Deep Drilling in All Kinds of Soil

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500m
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Machine Introduction

The RCF800C water well drill rig, with its dual-pump intelligent hydraulic technology, can sense changes in operating conditions in real time and automatically optimize power distribution, minimizing energy consumption while maintaining industry-leading drilling speeds. This rig utilizes a high-strength composite armored chassis and fully hydraulic crawler tracks, offering exceptional durability and superior navigability in complex terrain. It is particularly well-suited for mineral exploration and deep water well construction in extreme geological conditions.

When equipped with a high-performance air compressor system, this drill rig can achieve a drilling speed of 20-25 meters per hour in hard rock formations. Its exceptional deep drilling capability and stability make it the ultimate solution for professional drilling teams engaged in deep water well operations.

Detailed Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Key Features

The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
It is very powerful for drilling different layers, especially for hard rocks

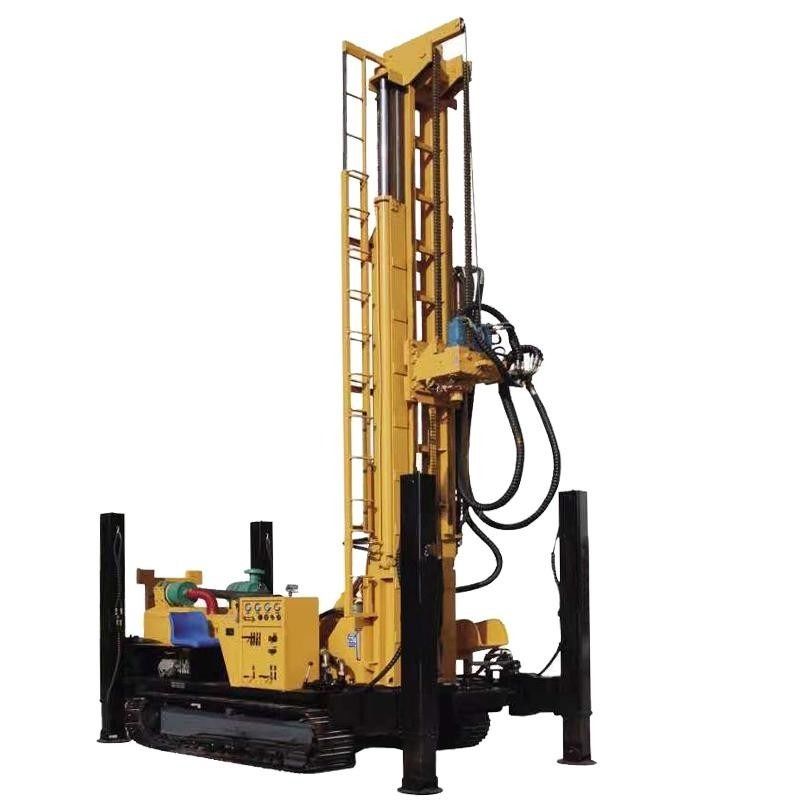

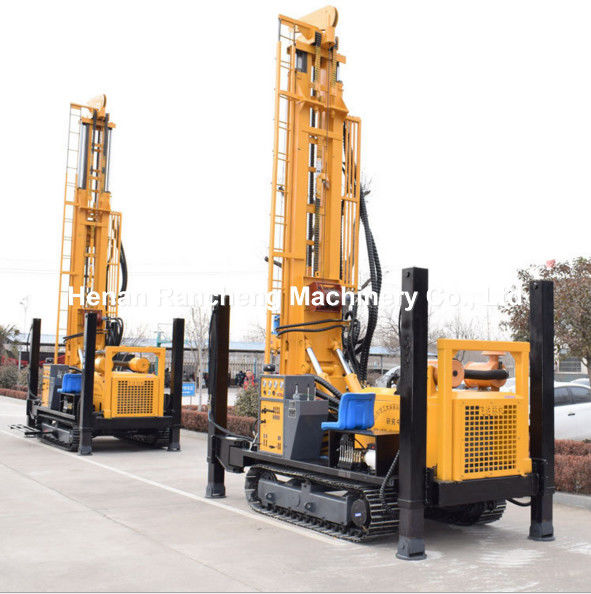

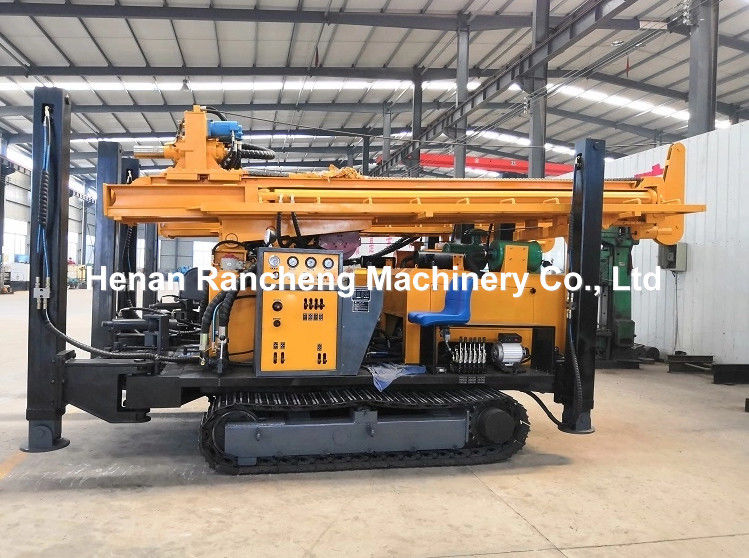

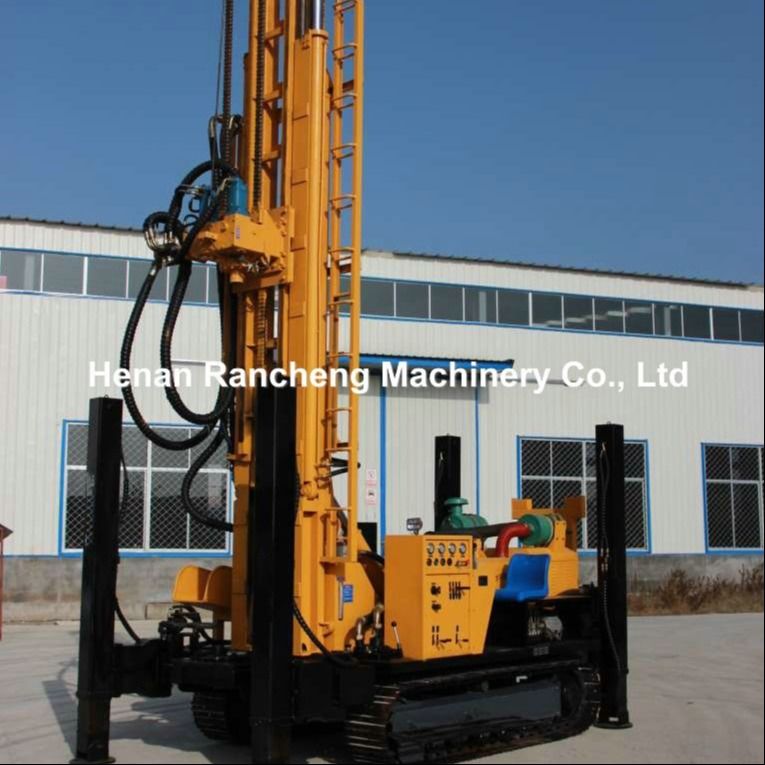

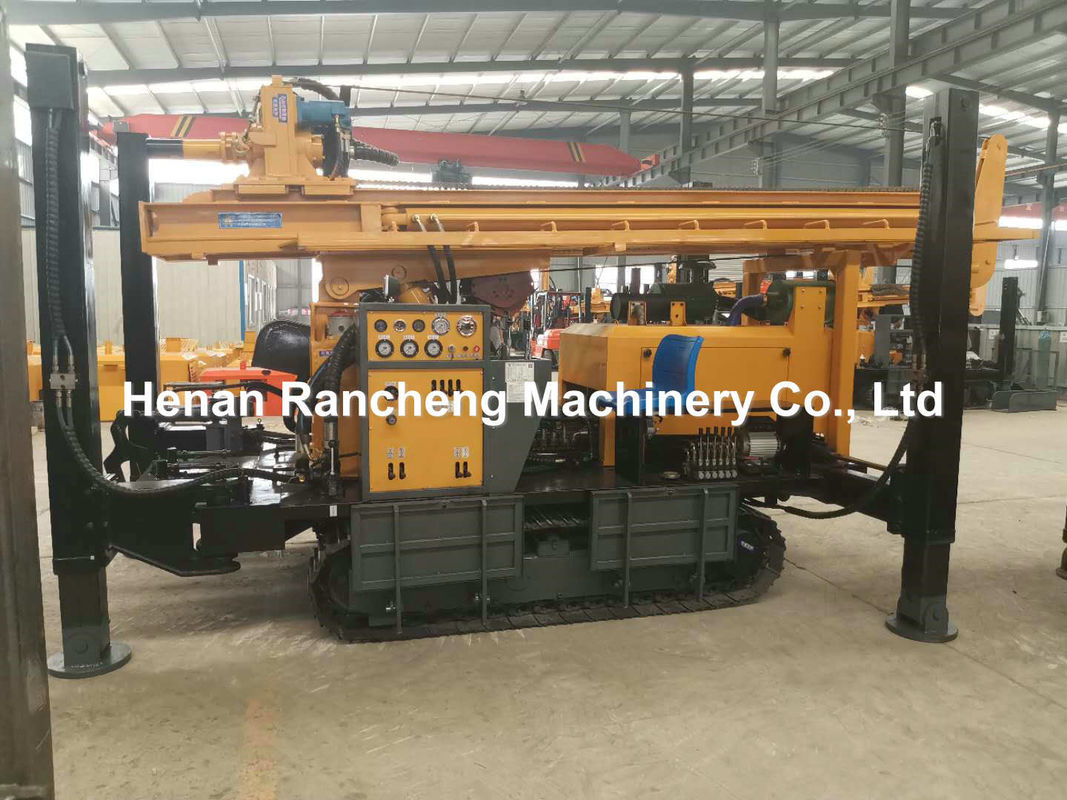

Machine Gallery
